new model Multi wood material veneer peeling machine

14 Sep,2020

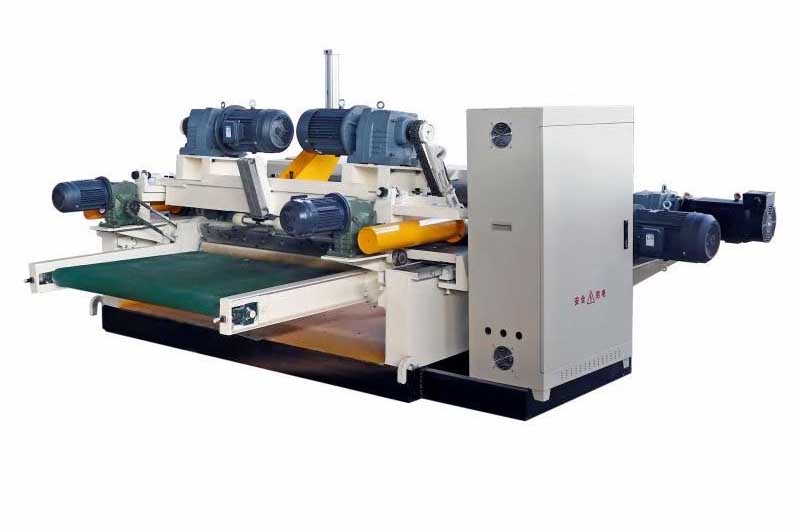

new model Multi wood material veneer peeling machine

With the continuous development of society, the amount of plywood is increasing, many countries and regions use different wood raw materials, the hardness of these raw materials are not the same, so some rotary cutting machines generally can not meet the needs of veneer production of these different wood. Linyi Guoyu Machinery Co., Ltd. has developed a new veneer rotary cutter suitable for the production of a variety of wood.

More Paramters About New Model veneer Peeling Machine:

Dimensions
4500mm x2300mm x1500mm
Total weight (T)
7.3t
Total power(kw)
42.2kw
Maximum processing length
1350mm
Maximum processing diameter
600mm
Remaining wood core
32mm
Veneer thickness
0.8mm-4.5mm
Linear velocity
30m/min-120m/min
Single roller motor
5.5kw x 2Pcs(servo)
Double roller motor
7.5kw x 2Pcs(servo)
Feed knife motor
11kw (servo)
Hob cutter dimensions
3.7kw x 1set (servo)
Conveyor motor
1.5kw x 1set
Feeding screw diamete
90mm
Rotary blade dimensions
1500mm×180mm×16mm
