26 Nov,2019

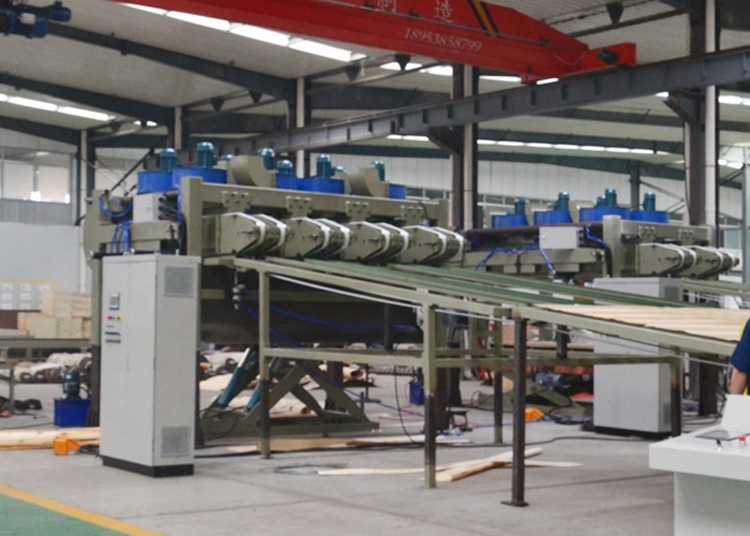

Hardwood veneer rotary peeling machine is a kind of machine which is converted into hardwood material rotary cutting design. This machine can process hardwood veneer with high quality and even thickness. It is a veneer rotary cutting machine with very high quality in veneer processing machinery.
| Name | Unit | Parameter |
| Length of peeling log | mm | 970mm-1270mm-1300mm |
| Maxi peeling log diameter | mm | 500mm |
| Left core diameter | mm | 30mm |
| Peeling Thickness Range | mm | 0.8mm-8.0mm |
| Peeling output speed | m/min | constant speed60m、Adjust speed 60m-120m |
| Roll Power | KW | Double roller Motor:11KW |
| Single roller Motor:5.5KW*2 | ||
| Feed Motor:11KW Servo Motor | ||
| Shear Motor:2.2KW Servo Motor | ||
| Cot Motor:2.2KW AC Motor | ||
| Reducer Model | R87 | Helical gear reducer |
| Size | mm | 4300mm*1700mm*1600mm |
| Weight | KG | 6000KGS |
| Production Efficiency | 8 hours | eucalyputs 1.7mm:50CBM |
| eucalyputs 2.2mm:60CBM | ||
| eucalyputs 3.6mm:90CBM | ||
| eucalyputs 6.0mm:120CBM |
