15 Oct,2019
Hot pressing system,heating system,heat conduction system,light and meticulous design,low heat consumption,uniform heat conduction,mechanism to set up the surface of the hot pressing machine,reasoable,high precision machining parts,process paramters to adjust a wide range of contol process design is reasonable...

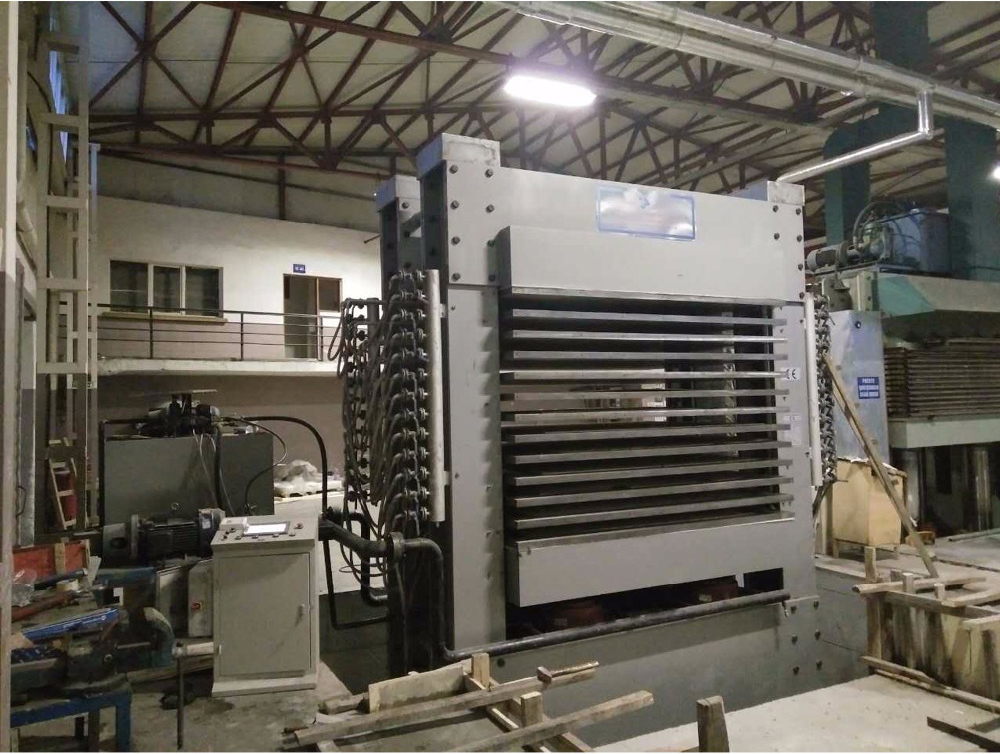

| Plywood Machine Hot press | JJZ-HP15 | JJZ-HP15 |
| Pressure range | 400T | 500T |
| Upper beam | 900mm | 900mm |
| Cylinder | 320mm*2pcs | 360mm*2pcs |
| Middle beam | 400mm | 400mm |
| Stroke of cylinder | 1050mm | 1050mm |
| Bottom beam | 900mm | 900mm |
| Hot platen | 2700*1370*42mm | 2700*1370*42mm |
| Power | 18.5kw | 18.5kw |
| Number of layers | 15 layers | 15 layers |
| Overall dimension | 3550*1370*4200mm | 3550*1370*4200mm |
| Inter lamellar space | 70mm | 70mm |
| Steel thickness | 35mm | 35mm |
| Close time | 20 seconds | 20 seconds |
| Frame | combination | combination |
| Hydraulic station | 280Shanghai aviation pump 1 only | 280Shanghai aviation pump 1 only< |
| Hign pressure pump | m25High pressure pump 1 only | m25High pressure pump 1 only |
| Weight | 32T | 33T |
1. The main frame id made of high quality international steel plate for one time,the structure is simple,the design is reasable,the strength is good,the load bearing pressure is big.
2.Microcomputer control,high degree of automation,high reliability,easy adjustment,long service life.
