02 Dec,2019

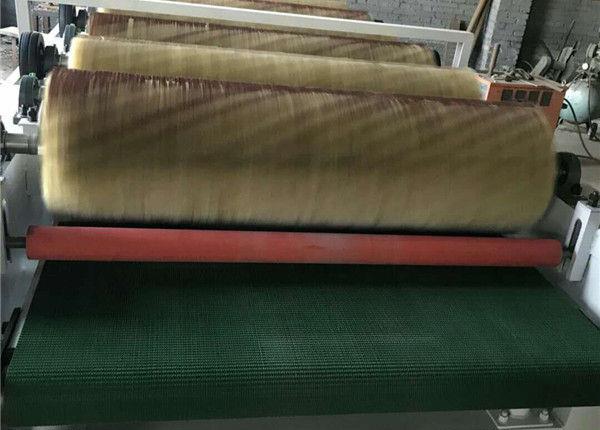

The plywood polishing machine is used to polish the plywood to produce the core of the veneer board. It is often used as the equipment. This kind of mechanical equipment has a high degree of automation and can be performed by one person.
| name | parameters |
| the processing thickness | 2.5-80mm |
| sanding width | 40-1300mm |
| 1#abrasive belt on the linear velocity | 18m/s |
| 2#abrasive belt on the linear velocity | 16m/s |
| 3#abrasive belt on the linear velocity | 16m/s |
| feeding speed | 0-100m/min |
| abrasive belt size(W*C) | 1360*2620mm |
| motor total power | 97kw |
| main motor power | 37+30+22kw |
| conveyor motor power | 7.5kw |
| compressed gas consumption | 0.8m3/min |
| wind dust collection system | 25-30m/s |
| dust collection system air volume | 10000m3/h |
| overall dimensions*(L*W*H) | 3140*2800*3240mm |
| the weight | 11T |
