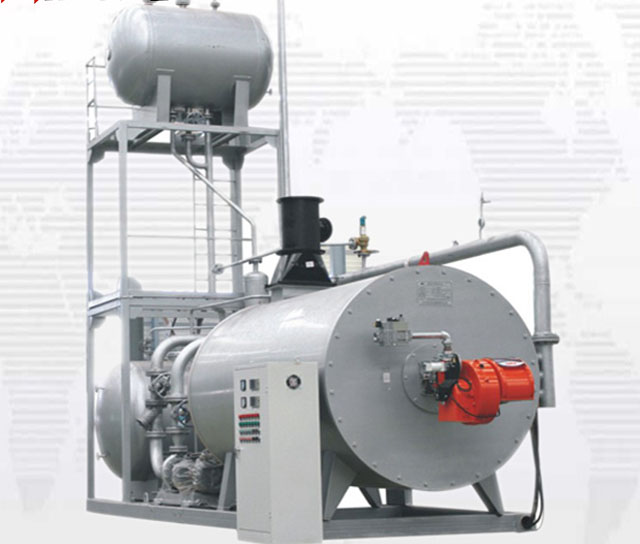

Industrial thermal oil heating boiler for plywood factory

08 Nov,2019

Product Features

1.High heat efficiency ,special structure ,could keep total heat efficiency up to 100%.

2.The control of the oil temperature will be concise within the range from -1°C to +1°C.Under low working pressure of 0.8Mpa ,boiler could achieve working temperature of 320°C.

3.There's a connection for the inert gas on the front shroud and it could fill 3 times of the capacity of the furnace with inert gas within 15 minutes in case of emergency to protect it and thus extend the life span.

4.Fully shop-assembled ,save transportation cost and installation fees.

5.The boiler operates automatically and will get rid of misconduct .With a nuclear PLC ,the percentage will be adjusted automatically and the monitor will be ral time ,together with the chainining protection.

Description		Unit	600	850	1200	1400	1800	2400	3500	4100	6000
Description		Unit	Y(Q)
Rated thermal power (KW)		KW/104kcal	600/50	850/75	1200/100	1400/125	1800/150	2400/200	3500/300	4100/350	6000/500
Heating efficiency (≥%)		%	90			92
Design pressure		Mpa	1						1.1
Medium highest temperature		℃	350
Medium capacity of boiler		m³	0.4	0.52	0.76	0.95	1.48	2.1	2.4	2.53	6.1
Medium circulation volume		m³/h	80		100		160	200			300
DN of oil outlet		DN	100		125		150	200			250
Whole system installed capacity	Oil	KW	30	40		45	50	70			150
Whole system installed capacity	Gas	KW	30	40		45	50	70			150
Total weight of equipment		KG	3530	4500	5600	6200	9500	10500	13500	16065	28850
External dimension	L	mm	3650	4100	5500	5700	5900	6500	8000	8200	9000
	W		1500	1700	210			2300	2400	2500	3200
	H		1870	2100	2400		2550	2750	2900	3000	3600
Transport dimension	L		3250	3800	4600	4850	5100	5800	6800	7200	7800
	W		1500	1700	2100	2100	2100	2300	2400	2500	3200
	H		1870	2100	2400		2550	2750	2900	3000	3600
